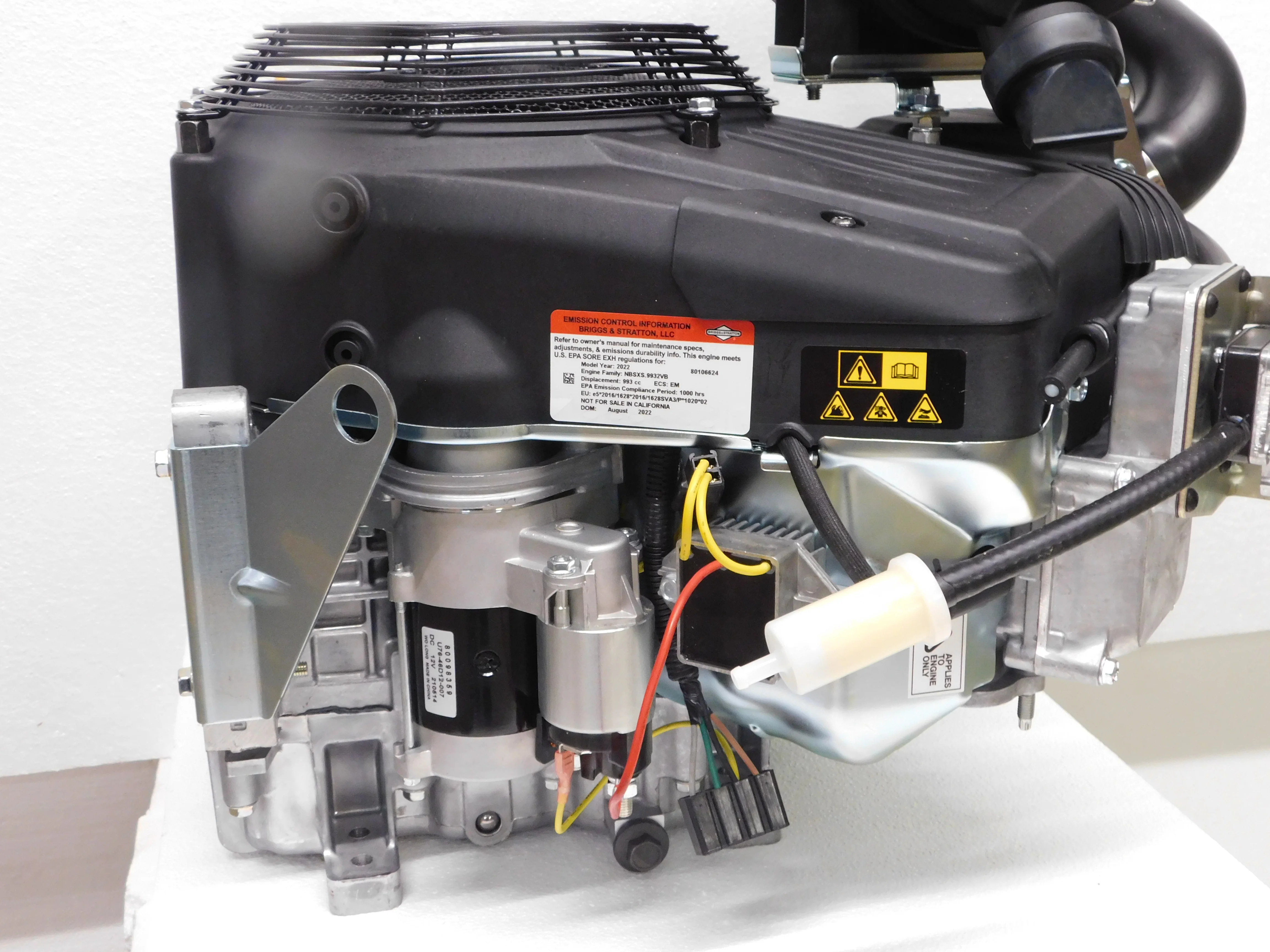

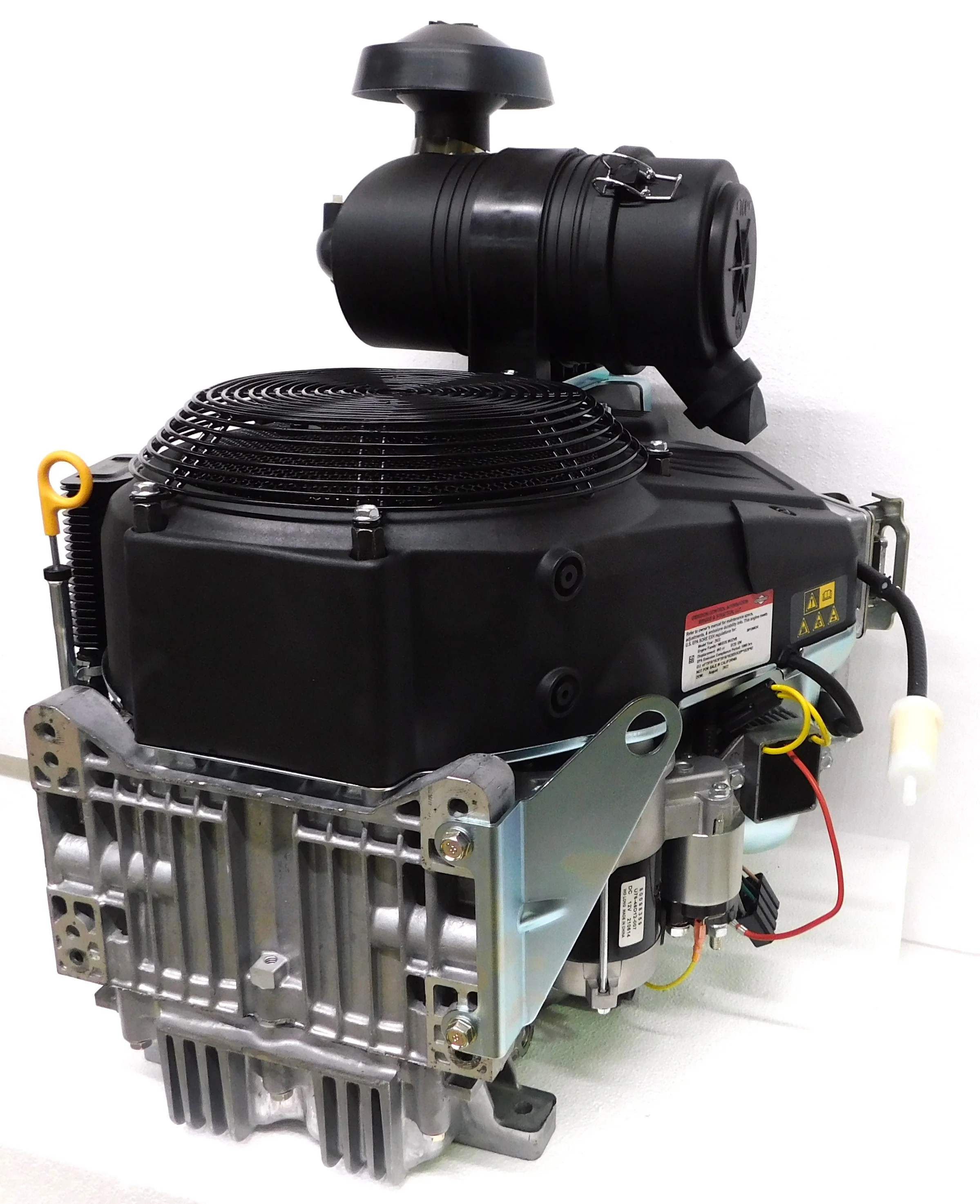

Briggs & Stratton Vertical Engine 36 HP Vanguard OHV Big Block 1-1/8" x 4-1/2" #613777-0014
Briggs & Stratton Vertical Engine 36 HP Vanguard OHV Big Block 1-1/8" x 4-1/2" #613777-0014
36hp Briggs Vanguard OHV
BIG BLOCK!
BIG BLOCK!
1-1/8" x 4-1/2" keyed shaft, tapped 7/16.
Cast iron sleeves, electric start w/ 20amp alternator,
full pressure lube w/ oil filter, oil cooler and fuel pump.
Less fuel tank.
Universal replacement engine for premium lawn and
Universal replacement engine for premium lawn and
garden and industrial/commercial applications.
Model 613777-0014.
Model 613777-0014.
135 lbs
613777-0014-J1
Engine Specifications
| SKU | 613777-0014-J1 |
| Model/Type/Trim | 613777-0014-J1 |
| Air Cleaner | Cyclonic with Rain Cap Loose |
| Alternator | 20 amp |
| Carburetor | Remote Choke w/casing clamp |
| Controls | Equip for Rem w/Casing Clamp |
| Crankshaft | Straight 1 1/8" Dia - 4.5" PTO |
| Crankshaft Details | 1/4" Keyway, 7/16-20 UNF-2B |
| Emissions Certification | EPA Cert-Not For Sale In Calif |
| Engine Idle Speed | Governed Idle 1750 +/- 100 RPM |
| Engine Package | Vanguard |
| Engine Sold In | United States & Canada |
| Engine Speed | 3600 +/- 0100 RPM - No Load |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | 7.5" with 20 Micron Filter |
| Fuel Pump | Installed |
| Fuel Tank | Without |
| Label Power | Vanguard 993cc 36GHP |
| Lubrication | Full Pressure Lube |
| Oil Cooler | Installed |
| Oil Drain | Dual - M14 Threads Both Sides |
| Oil Filter | Installed |
| Oil Pressure Switch | Oil Pressure Switch 7-10 PSI |
| Purge Port | Low Vac Capped,Connector Loose |
| Spark Plug Boot | Rubber |
| Wire Harness | 8 Pin |
$719.70
Original: $2,399.00
-70%Briggs & Stratton Vertical Engine 36 HP Vanguard OHV Big Block 1-1/8" x 4-1/2" #613777-0014—
$2,399.00
$719.70
Description
36hp Briggs Vanguard OHV
BIG BLOCK!
BIG BLOCK!
1-1/8" x 4-1/2" keyed shaft, tapped 7/16.
Cast iron sleeves, electric start w/ 20amp alternator,
full pressure lube w/ oil filter, oil cooler and fuel pump.
Less fuel tank.
Universal replacement engine for premium lawn and
Universal replacement engine for premium lawn and
garden and industrial/commercial applications.
Model 613777-0014.
Model 613777-0014.
135 lbs
613777-0014-J1
Engine Specifications
| SKU | 613777-0014-J1 |
| Model/Type/Trim | 613777-0014-J1 |
| Air Cleaner | Cyclonic with Rain Cap Loose |
| Alternator | 20 amp |
| Carburetor | Remote Choke w/casing clamp |
| Controls | Equip for Rem w/Casing Clamp |
| Crankshaft | Straight 1 1/8" Dia - 4.5" PTO |
| Crankshaft Details | 1/4" Keyway, 7/16-20 UNF-2B |
| Emissions Certification | EPA Cert-Not For Sale In Calif |
| Engine Idle Speed | Governed Idle 1750 +/- 100 RPM |
| Engine Package | Vanguard |
| Engine Sold In | United States & Canada |
| Engine Speed | 3600 +/- 0100 RPM - No Load |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | 7.5" with 20 Micron Filter |
| Fuel Pump | Installed |
| Fuel Tank | Without |
| Label Power | Vanguard 993cc 36GHP |
| Lubrication | Full Pressure Lube |
| Oil Cooler | Installed |
| Oil Drain | Dual - M14 Threads Both Sides |
| Oil Filter | Installed |
| Oil Pressure Switch | Oil Pressure Switch 7-10 PSI |
| Purge Port | Low Vac Capped,Connector Loose |
| Spark Plug Boot | Rubber |
| Wire Harness | 8 Pin |
