Briggs & Stratton 104M0B-0103 InStart 7.25 TP 163cc ES 25 mm x 3-5/32"

Briggs & Stratton 104M0B-0103 InStart 7.25 TP 163cc ES 25 mm x 3-5/32"

Briggs & Stratton 104M0B-0103 InStart 7.25 TP 163cc ES 25 mm x 3-5/32"

7.25 Torque Power Briggs Engine
  • 25mm x 3-5/32" shaft, tapped 3/8" with 1/4" keyway.
  • 2 Woodruff Keys
  • Compliance engine.
  • 12volt Electric Start with recoil auxilary
  • No prime, no choke: Ready Start Engine.
  • Adjustable speed throttle 3100rpm top speed
  • Universal replacement engine for Ransome, Bunton, Snapper,MTD, Ariens, Murray, and other rotary mowers.
  • 2 year consumer/ 90 day commercial warranty.
  • Battery and charger not included
  • Model 104M0B-0114.
  • 28 lbs
Power Lbs/Ft of Torque 7.25
Engine Series 725
Displacement 163
Oil Capacity 16 oz (0.5 l)
Valve Configuration OHV
Flywheel Torque 60 lb/ft (81.5 Nm)
Governor Arm Torque 30 lb/in (3.5 Nm)
Plug Gap 0.03 in (0.75 mm)
Intake Valve .004-.008 in (.10-.20 mm)
Exhaust Valve .004-.008 in (.10-.20 mm)
Idle Speed 1750
$89.70

Original: $299.00

-70%
Briggs & Stratton 104M0B-0103 InStart 7.25 TP 163cc ES 25 mm x 3-5/32"—

$299.00

$89.70
Product image 1
Product image 2
Product image 3

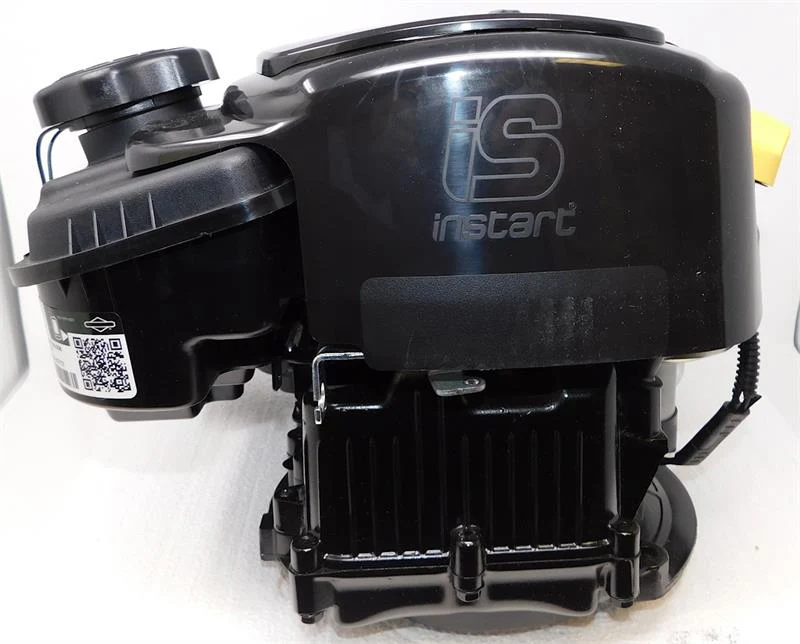

Product image 4

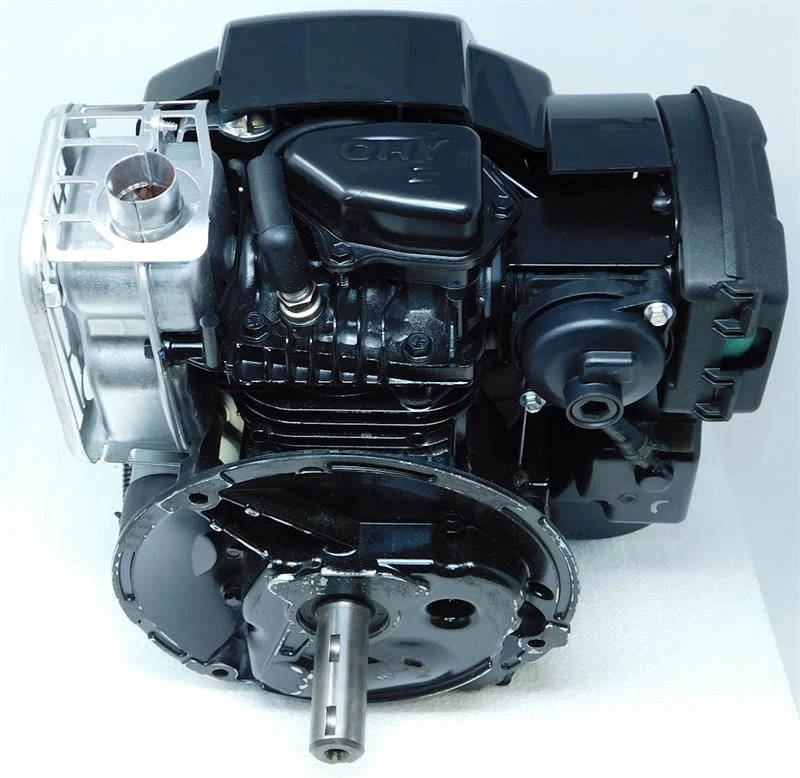

Product image 5

Description

Briggs & Stratton 104M0B-0103 InStart 7.25 TP 163cc ES 25 mm x 3-5/32"

7.25 Torque Power Briggs Engine
  • 25mm x 3-5/32" shaft, tapped 3/8" with 1/4" keyway.
  • 2 Woodruff Keys
  • Compliance engine.
  • 12volt Electric Start with recoil auxilary
  • No prime, no choke: Ready Start Engine.
  • Adjustable speed throttle 3100rpm top speed
  • Universal replacement engine for Ransome, Bunton, Snapper,MTD, Ariens, Murray, and other rotary mowers.
  • 2 year consumer/ 90 day commercial warranty.
  • Battery and charger not included
  • Model 104M0B-0114.
  • 28 lbs
Power Lbs/Ft of Torque 7.25
Engine Series 725
Displacement 163
Oil Capacity 16 oz (0.5 l)
Valve Configuration OHV
Flywheel Torque 60 lb/ft (81.5 Nm)
Governor Arm Torque 30 lb/in (3.5 Nm)
Plug Gap 0.03 in (0.75 mm)
Intake Valve .004-.008 in (.10-.20 mm)
Exhaust Valve .004-.008 in (.10-.20 mm)
Idle Speed 1750
