Briggs & Stratton 570cc LP/NG 10kw Watt Standby Generator Engine #359775-0001

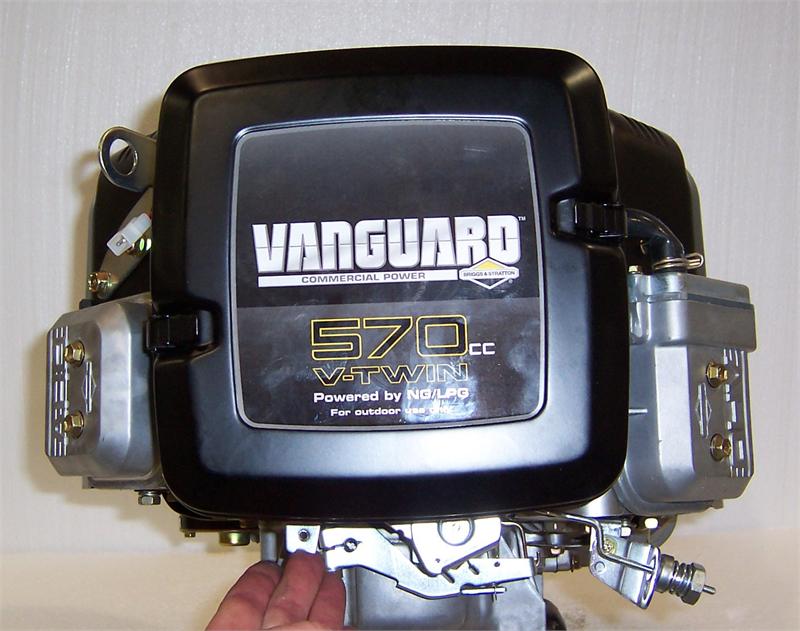

570cc Briggs Vanguard OHV
Briggs and Stratton Standby Generator Replacement Engine
- LP/NG Setup

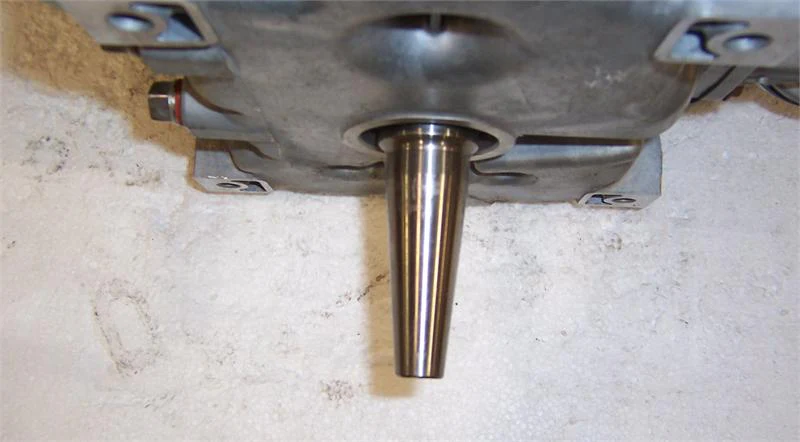

- Tapered Shaft
- No Keyway
- No Tank
- No Muffler
- 12 Volt Electric Start
- Cast Iron Sleeves
- Model 359775-0001
- 90 LBS
Engine Specifications
| Engine Fuel | Gaseous Fuel |
| Configuration | Vertical |
| Cylinders | Two |
| SKU | 359775-0001-E1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3150 +/-100 RPM can be adjusted to 3750rpm |
| Oil Capacity | 56 fl. oz. |
| Air Cleaner | AIR CLEANER, PAPER ELEMENT (UL APPROVED) |
| Air Cleaner Cover | AIR CLNR COV COL 290 - SATIN BLACK |
| Bearings | BEARINGS, STEEL BACKED ALUM MAG |
| Blower Housing | DUCTED AIR FLOW |
| Bore Type | Sleevebore |
| Bore Size | 2.83 |
| Stroke | 2.75 |
| Intake | LP/NG MIXER VALVE |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 52, MODEL DBS |
| Cylinder Head | CYLINDER, TWIN W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, IN CRANKCASE |
| Oil Drain | OIL DRAIN, TRI-DRAIN |
| Misc | 312079 FUEL HOSE |
| Flywheel | FLYWHEEL, HVY EQUIP FOR ELE ST & NON-ALT |
| Fuel System | FUEL SYSTEM, WITHOUT FUEL TANK |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, WITHOUT |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, 12 VOLT INDUSTRIAL |
$999.00
Briggs & Stratton 570cc LP/NG 10kw Watt Standby Generator Engine #359775-0001—
$999.00
Description
570cc Briggs Vanguard OHV
Briggs and Stratton Standby Generator Replacement Engine
- LP/NG Setup
- Tapered Shaft
- No Keyway
- No Tank
- No Muffler
- 12 Volt Electric Start
- Cast Iron Sleeves
- Model 359775-0001
- 90 LBS
Engine Specifications
| Engine Fuel | Gaseous Fuel |
| Configuration | Vertical |
| Cylinders | Two |
| SKU | 359775-0001-E1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3150 +/-100 RPM can be adjusted to 3750rpm |
| Oil Capacity | 56 fl. oz. |
| Air Cleaner | AIR CLEANER, PAPER ELEMENT (UL APPROVED) |
| Air Cleaner Cover | AIR CLNR COV COL 290 - SATIN BLACK |
| Bearings | BEARINGS, STEEL BACKED ALUM MAG |
| Blower Housing | DUCTED AIR FLOW |
| Bore Type | Sleevebore |
| Bore Size | 2.83 |
| Stroke | 2.75 |
| Intake | LP/NG MIXER VALVE |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 52, MODEL DBS |
| Cylinder Head | CYLINDER, TWIN W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, IN CRANKCASE |
| Oil Drain | OIL DRAIN, TRI-DRAIN |
| Misc | 312079 FUEL HOSE |
| Flywheel | FLYWHEEL, HVY EQUIP FOR ELE ST & NON-ALT |
| Fuel System | FUEL SYSTEM, WITHOUT FUEL TANK |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, WITHOUT |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, 12 VOLT INDUSTRIAL |
