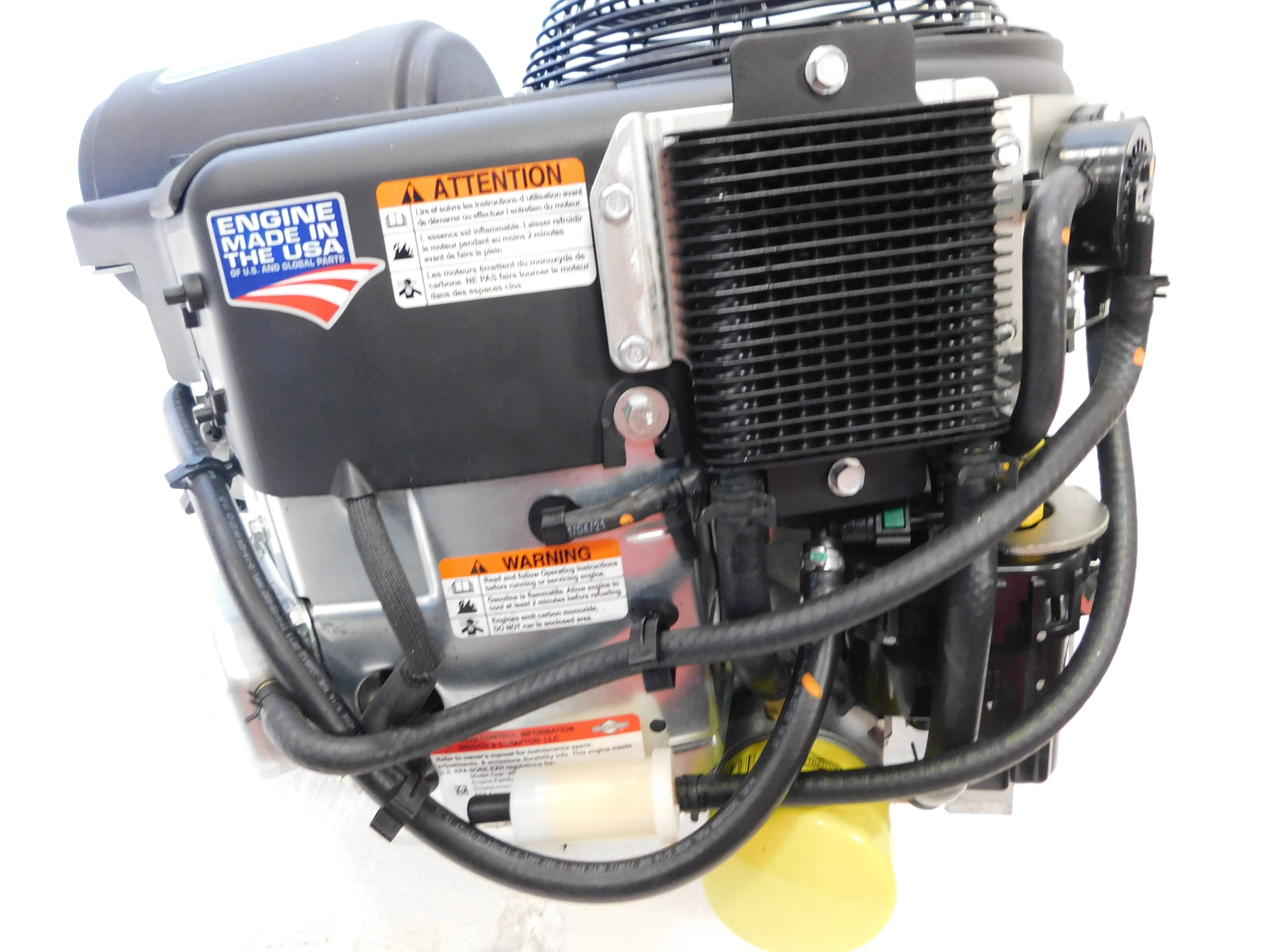

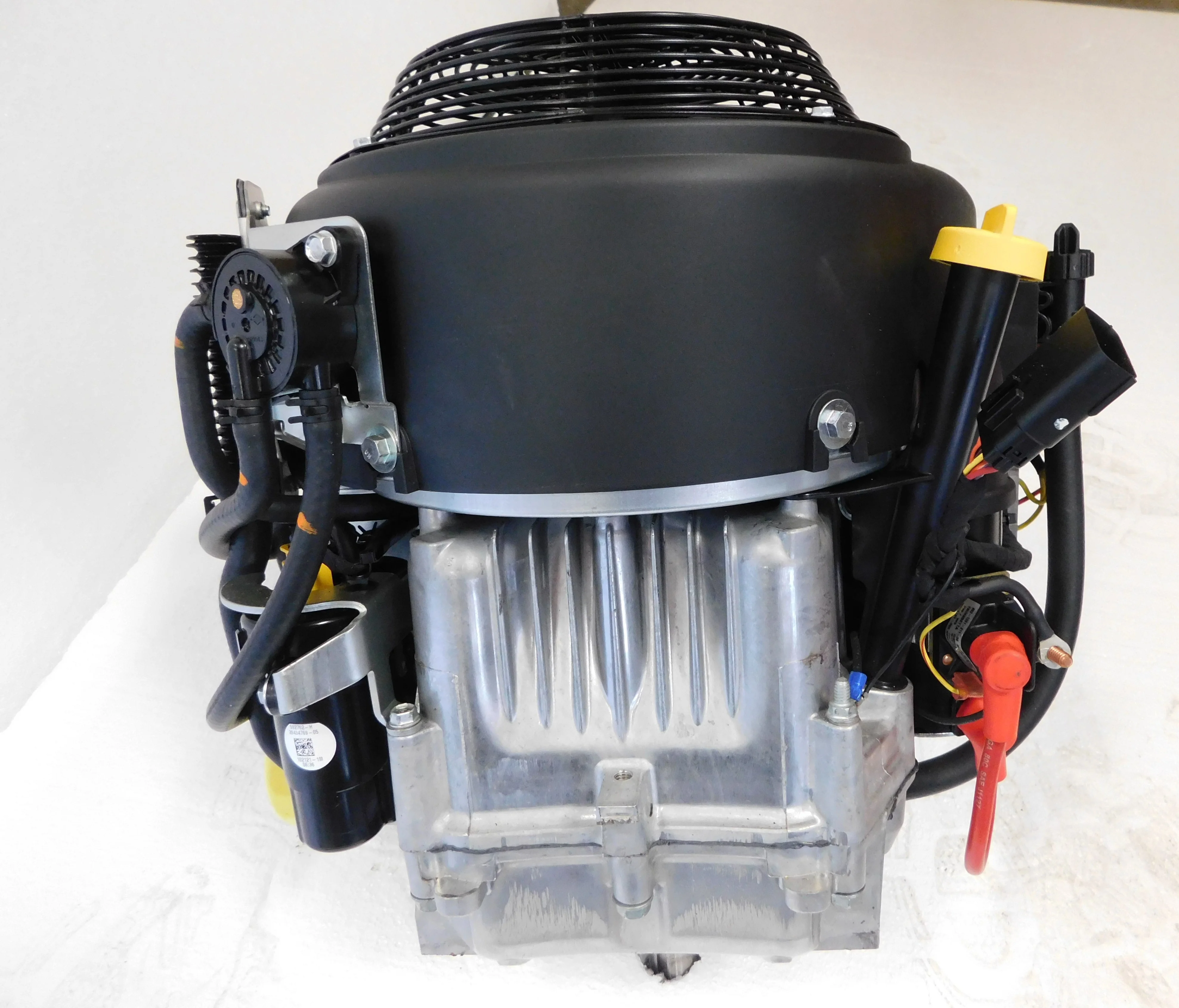

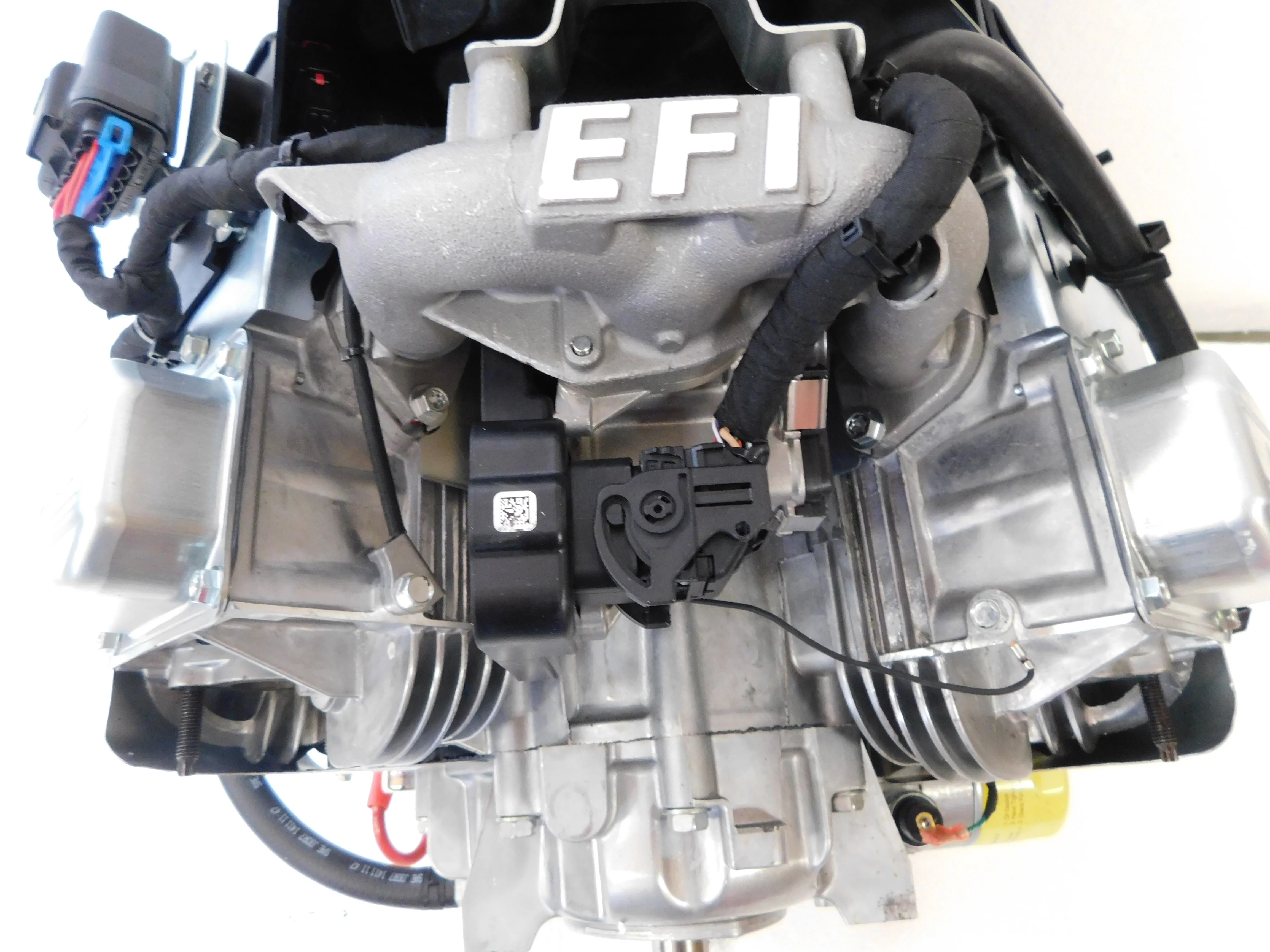

Briggs & Stratton 27 HP 810cc EFI Commercial Series Engine 1-1/8 x 4-5/16 #49X977-0003
|
|
|
|
Briggs & Stratton 27 HP 810cc EFI
Commercial Series Vertical Shaft OHV Engine
New 5-Stage Cyclonic Air Filter System
Not available for sale in California
This engine is equipped with ETC (electronic throttle control) If switching from cable controls the engine will require Throttle Conversion kit #84013499
|
MODEL NUMBER:
|
49X977-0003 |
|
POWER OUTPUT:
|
27 Horse Power (Formerly rated as 30HP) |
|
SHAFT MOUNTING:
|
Vertical Shaft |
|
SHAFT SIZE: (D x L)
|
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway |
|
STARTER TYPE:
|
Electric Starter |
|
APPLICATION(S):
|
Riding Mower Engine |
|
WEIGHT:
|
94 lbs |
|
REPLACES:
|
NEW SERIES! Fits current 20-27 HP Intek V-Twin OHV bolt patterns |
|
NOTES/FEATURES:
27hp Briggs OHV
1-1/8" x 4-5/16" shaft, tapped 7/16" with 1/4" keyway. Fits current 20-27 HP Intek V-Twin OHV bolt patterns.
|
Engine Specifications
| SKU | 49X977-0003-G1 |
| Model/Type/Trim | 49X977-0003-G1 |
| 6 Pin Connector | Without |
| Air Cleaner | Cyclonic |
| Air Cleaner Color | 290 Satin Black |
| Alternator | 16 amp |
| Carburetor | Without, EFI Installed |
| Controls | EFI/ETC |
| Crankshaft | 1.125" Straight 4.29" PTO |
| Crankshaft Details | 1/4" Keyway, 7/16-20 D&T |
| Emissions Certification | EPA Cert-Not For Sale In Calif |
| Engine Base | Hour Meter Oil Pressure Switch |
| Engine Idle Speed | Governed Idle 1750 +/- 100 RPM |
| Engine Package | Commercial Series |
| Engine Sold In | United States & Canada |
| Engine Speed | 3600 +/- 0100 RPM - No Load |
| Flywheel | Heavy - Cast Iron |
| Fuel Line | 12.5" with 30 Micron Filter |
| Fuel Pump | Integral |
| Fuel Shutoff | Without |
| Label Power | CXi2700 |
| Lubrication | Full Pressure Lube |
| Oil Cooler | Installed |
| Oil Drain | 12" Flex Hose |
| Oil Filter | Premium |
| PTO Bearing | High Radial Load |
| Purge Port | Low Vacuum Purge Port Capped |
| Regulator | Installed |
| Spark Plug Boot | Extended |
|
