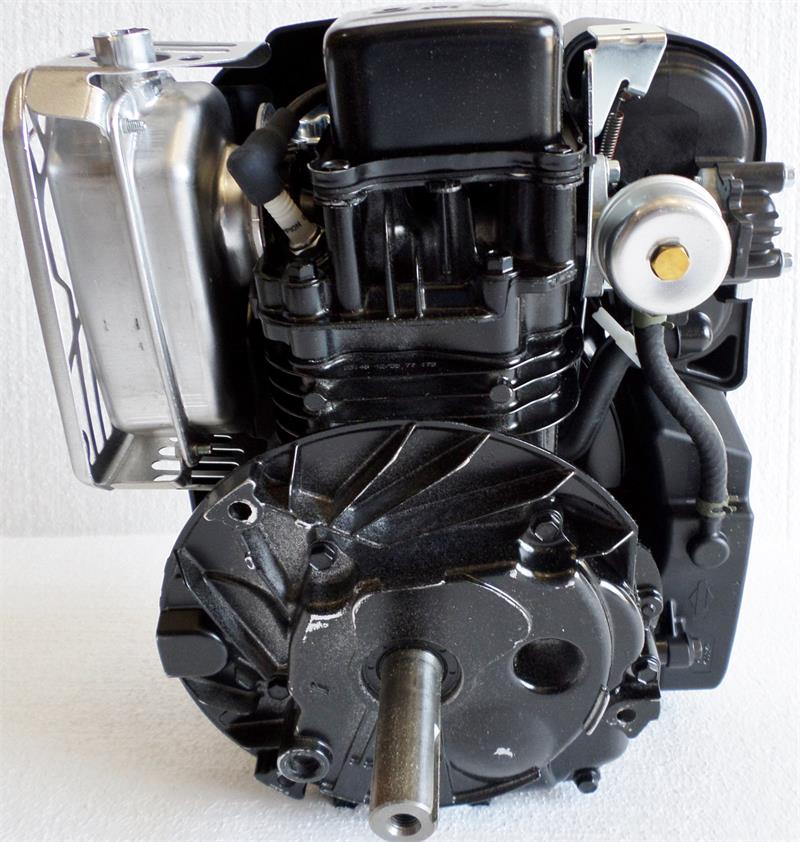

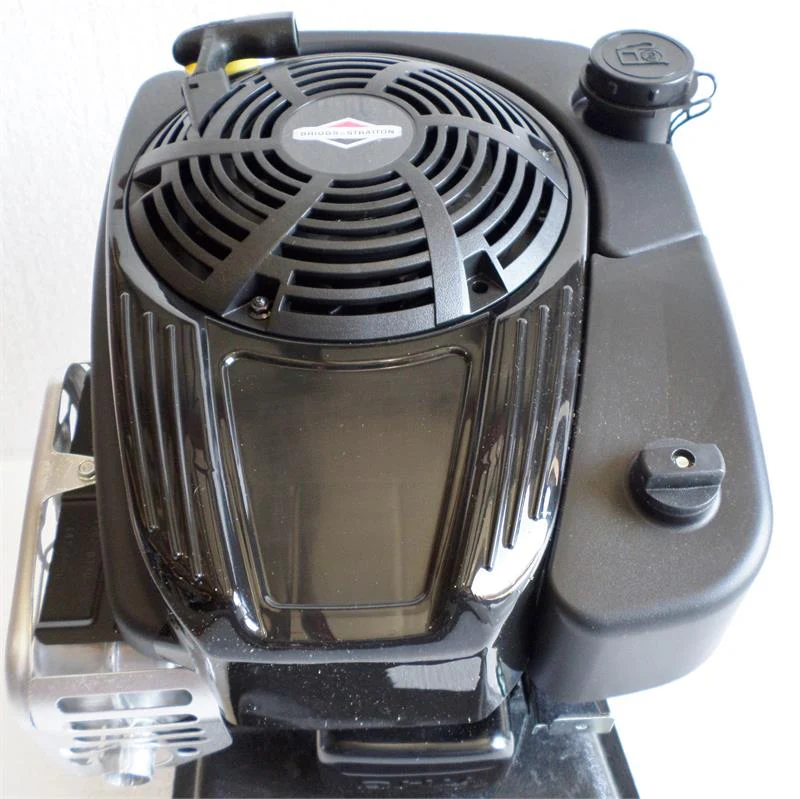

Briggs & Stratton 10tp 223cc OHV Engine TORO Timemaster #14D932-0110
10tp 223cc Professional Series Engine
Replaces Toro Timemaster mowers
25mm x 3-5/32" shaft, tapped 7/16" w/ keyway
Fixed speed throttle design. ReadyStart
Heavy Flywheel Engine
3100 rpm top speed setting.
Works in place of 121S02-0130
Model 14D932-0110.
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Vertical |
| Cylinders | One |
| SKU | 14D932-0110-F1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3400 +/-100 RPM |
| Oil Capacity | 20 fl. oz. |
| Air Cleaner | AIR CLEANER, PAPER ELEMENT OVAL |
| Bearings | BEARINGS, PLAIN MAG |
| Blower Housing | REWIND COVER, LS, 290 SATIN BLACK |
| Bore Type | Koolbore |
| Bore Size | 2.9134 |
| Stroke | 2.04 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 62, QUANTUMS/11-12 |
| Cylinder Head | CYLINDER, ALUMINUM |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, OPPOSITE CARB SIDE |
| Oil Drain | OIL FILL, OPPOSITE CARB SIDE |
| Misc | FUEL HOSE, LOW PERM WITH 40 MIC FILTER (591935) |
| Flywheel | FLYWHEEL, HVY, CAST IRON, REW ONLY |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, PERFORMANCE W/TUBE OUTLET INSTALLED (SPEC |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND POSITION - 5:30 O'CLOCK |
$399.95
Briggs & Stratton 10tp 223cc OHV Engine TORO Timemaster #14D932-0110—
$399.95
Description
10tp 223cc Professional Series Engine
Replaces Toro Timemaster mowers
25mm x 3-5/32" shaft, tapped 7/16" w/ keyway
Fixed speed throttle design. ReadyStart
Heavy Flywheel Engine
3100 rpm top speed setting.
Works in place of 121S02-0130
Model 14D932-0110.
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Vertical |
| Cylinders | One |
| SKU | 14D932-0110-F1 |
| Top No Load Speed | SET ENG NO-LOAD SPEED TO 3400 +/-100 RPM |
| Oil Capacity | 20 fl. oz. |
| Air Cleaner | AIR CLEANER, PAPER ELEMENT OVAL |
| Bearings | BEARINGS, PLAIN MAG |
| Blower Housing | REWIND COVER, LS, 290 SATIN BLACK |
| Bore Type | Koolbore |
| Bore Size | 2.9134 |
| Stroke | 2.04 |
| Casing Clamps | CASING CLAMP & SCREW, WITHOUT |
| Controls Groups | CONTROL GROUP 62, QUANTUMS/11-12 |
| Cylinder Head | CYLINDER, ALUMINUM |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, OPPOSITE CARB SIDE |
| Oil Drain | OIL FILL, OPPOSITE CARB SIDE |
| Misc | FUEL HOSE, LOW PERM WITH 40 MIC FILTER (591935) |
| Flywheel | FLYWHEEL, HVY, CAST IRON, REW ONLY |
| Governor | MECHANICAL GOVERNOR |
| Exhaust | MUFFLER, PERFORMANCE W/TUBE OUTLET INSTALLED (SPEC |
| Spark Plug | SPARK PLUG, RESISTOR |
| Starting System | STARTER, REWIND POSITION - 5:30 O'CLOCK |
