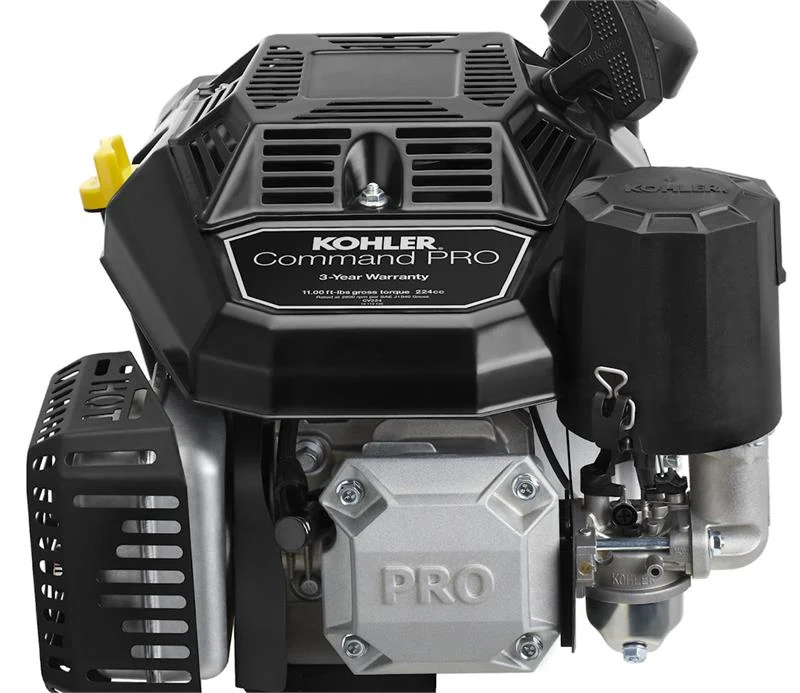

Kohler CV224-3002 Command PRO 11.0 TP 224cc Toro Timemaster 25mm x 3-5/32" w/ Oil Filter
Kohler CV224-3002 Command PRO 11.0 TP 25mm x 3-5/32" w/ Oil Filter
Toro Timemaster Replacement
25mm x 3-5/32" Tapped 7/16-20
Heavy Flywheel
Features:
- Torque output: 11.0 ft-lbs
- 3-year limited commercial warranty
- Enjoy effortless starts thanks to our Easy-Pull technology
- Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
- Consistent-Cut technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
- Cast-iron cylinder liners add durability and engine protection
Model
Displacement (cc): 13.7 (224)
Bore in (mm): 2.9 (73)
Stroke in (mm): 2.1 (53.5)
Gross Torque ft lbs (Nm) 1: 11 (14.9)
Compression Ratio: 9.2:1
Dry Weight lbs (kg): 37 (16.8)
Oil Capacity US qts (L): 0.625 (0.59)
Lubrication: Dual - Full Pressure & Splash
Dimensions LxWxH (in): 15.7 x 13.9 x 11.1
Backpressure Limit 2: 40
Emissions Compliance: 0=CARB Phase III, 1=EPA Phase III
Engine Type: Commercial
$203.70
Original: $679.00
-70%Kohler CV224-3002 Command PRO 11.0 TP 224cc Toro Timemaster 25mm x 3-5/32" w/ Oil Filter—
$679.00
$203.70
Description
Kohler CV224-3002 Command PRO 11.0 TP 25mm x 3-5/32" w/ Oil Filter
Toro Timemaster Replacement
25mm x 3-5/32" Tapped 7/16-20
Heavy Flywheel
Features:
- Torque output: 11.0 ft-lbs
- 3-year limited commercial warranty
- Enjoy effortless starts thanks to our Easy-Pull technology
- Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
- Consistent-Cut technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
- Cast-iron cylinder liners add durability and engine protection
Model
Displacement (cc): 13.7 (224)
Bore in (mm): 2.9 (73)
Stroke in (mm): 2.1 (53.5)
Gross Torque ft lbs (Nm) 1: 11 (14.9)
Compression Ratio: 9.2:1
Dry Weight lbs (kg): 37 (16.8)
Oil Capacity US qts (L): 0.625 (0.59)
Lubrication: Dual - Full Pressure & Splash
Dimensions LxWxH (in): 15.7 x 13.9 x 11.1
Backpressure Limit 2: 40
Emissions Compliance: 0=CARB Phase III, 1=EPA Phase III
Engine Type: Commercial
