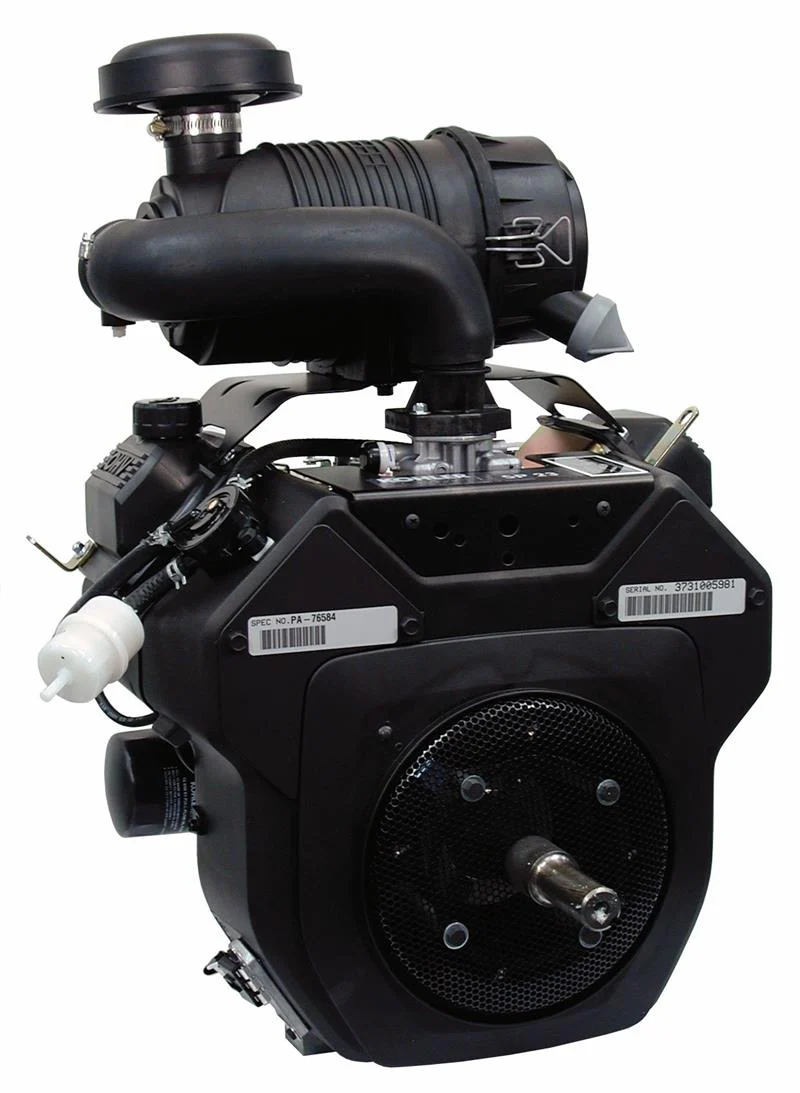

Kohler Command Pro 22.5 HP 674cc Exmark Engine 1" x 2.781" # CH680-3088
22.5 hp Command Pro Engine
Exmark Lazer Z replacement engine.
Exmark Lazer Z replacement engine.
1" x 2.781" keyed shaft with 7/16" keyway
Heavy Duty air filter
less gas tank, includes muffler.
Model CH680-3088.
106 lbs
Engine Type:
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
Model |
Command PRO® CH680 |
| J1940 Power hp(kW) 1 | 22.5 (16.8) |
| Displacement cu in (cc) | 41.1 (674) |
| Bore in (mm) | 3.2 (80) |
| Stroke in (mm) | 2.6 (67) |
| Peak Torque lbs. ft (Nm) | 36.8 (49.9) |
| Compression Ratio | 8.5:1 |
| Dry Weight lbs (kg) | 90 (41) |
| Oil Capacity U.S. quarts (L) | 2 (1.9) |
| Lubrication | Full pressure w/full-flow filter |
| Dimensions L x W x H in | 14 x 17.7 x 19.0 |
| Backpressure Limit 2 | 50 |
| J1995 Power hp (kW) 3 | 21.5 (16) |
| J1995 Rated Speed (RPM) | 3600 |
* Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet.
1 Power (hp) and Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.
2 Inches of H20 @ 3600 RPM WOT
3 J1995 power and torque certified by 3rd Party Witness
2 Inches of H20 @ 3600 RPM WOT
3 J1995 power and torque certified by 3rd Party Witness
$929.70
Original: $3,099.00
-70%Kohler Command Pro 22.5 HP 674cc Exmark Engine 1" x 2.781" # CH680-3088—
$3,099.00
$929.70
Description
22.5 hp Command Pro Engine
Exmark Lazer Z replacement engine.
Exmark Lazer Z replacement engine.
1" x 2.781" keyed shaft with 7/16" keyway
Heavy Duty air filter
less gas tank, includes muffler.
Model CH680-3088.
106 lbs
Engine Type:
4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
Model |
Command PRO® CH680 |
| J1940 Power hp(kW) 1 | 22.5 (16.8) |
| Displacement cu in (cc) | 41.1 (674) |
| Bore in (mm) | 3.2 (80) |
| Stroke in (mm) | 2.6 (67) |
| Peak Torque lbs. ft (Nm) | 36.8 (49.9) |
| Compression Ratio | 8.5:1 |
| Dry Weight lbs (kg) | 90 (41) |
| Oil Capacity U.S. quarts (L) | 2 (1.9) |
| Lubrication | Full pressure w/full-flow filter |
| Dimensions L x W x H in | 14 x 17.7 x 19.0 |
| Backpressure Limit 2 | 50 |
| J1995 Power hp (kW) 3 | 21.5 (16) |
| J1995 Rated Speed (RPM) | 3600 |
* Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet.
1 Power (hp) and Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.
2 Inches of H20 @ 3600 RPM WOT
3 J1995 power and torque certified by 3rd Party Witness
2 Inches of H20 @ 3600 RPM WOT
3 J1995 power and torque certified by 3rd Party Witness
