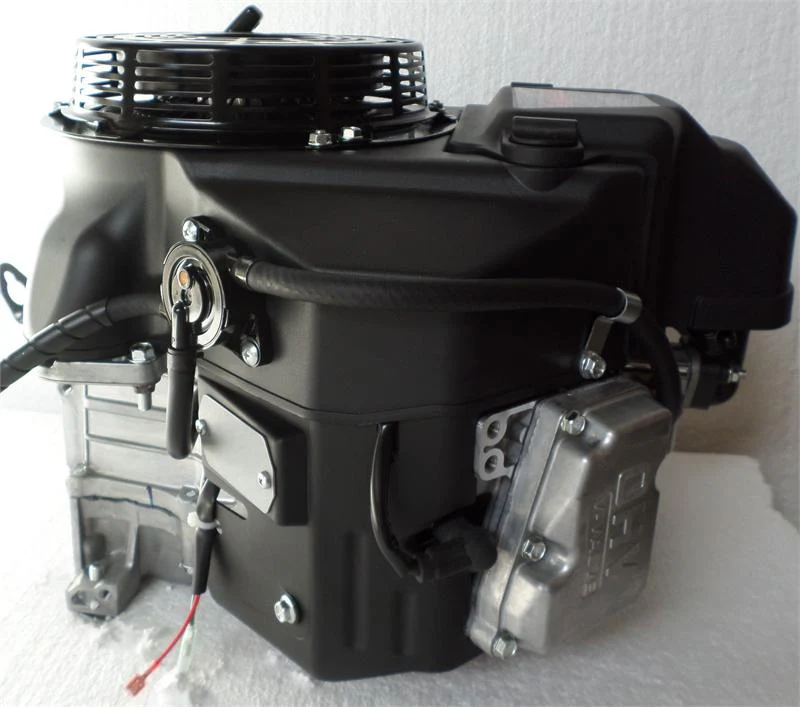

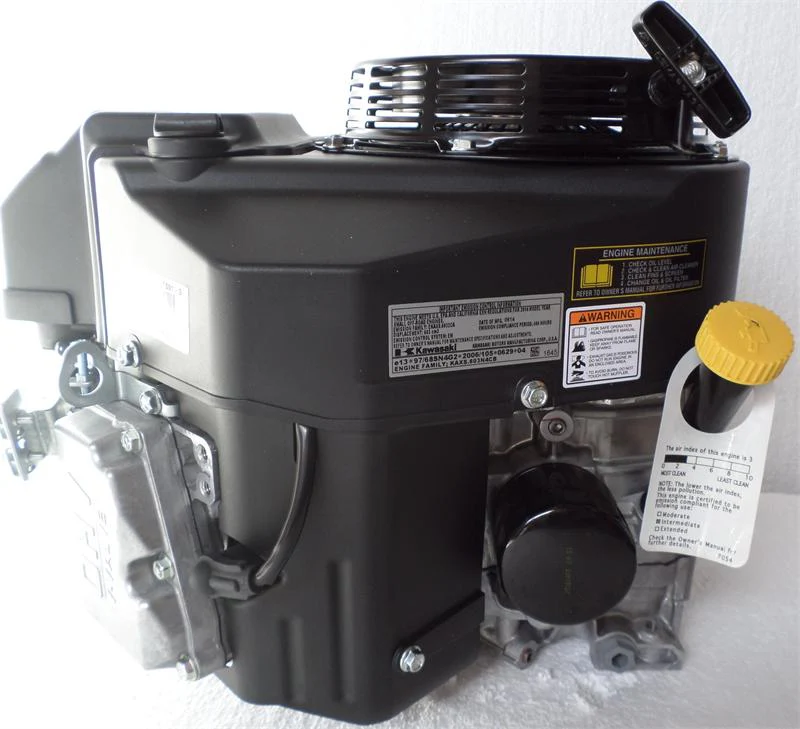

Kawasaki Vertical 14.5 HP V-Twin Engine Recoil Clutch Coil 1" x 3-5/32" #FS481V-JS01

Kawasaki Vertical 14.5 HP V-Twin Engine Recoil Clutch Coil 1" x 3-5/32" #FS481V-JS01


Kawasaki FS Series engines are engineered to be high powered but still environmentally friendly. They feature a compact, 90° V-twin design with overhead V-valve, as well as an internally vented carburetor with a fuel shut-off solenoid. There is also a dual element air filter with a plastic blower housing that makes for quieter operation.

Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine

14.5hp Kawasaki OHV
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
Recoil start, 13amp Clutch Coil.
Less fuel tank, has fuel pump
Seperate choke & throttle
Universal replacement engine for commercial wide area walk behinds.
Model FS481V-JS01
83 lbs.


FEATURES:

  • Overhead V-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter
  • Cast-iron cylinder liners
SPECIFICATIONS
DISPLACEMENT
603cm3 (36.8cu. in.)
NUMBER OF CYLINDERS
2
BORE X STROKE
2.9 x 2.8 in. (73 x 72mm)
COMPRESSION RATIO
8.1:1
OIL CAPACITY
1.8U.S. qt (1.7liters)
MAXIMUM POWER
14.5hp (10.8kW)
at 3,600rpm
MAXIMUM TORQUE
30.9ft lbs (42.0N·m)
at 1,800RPM
DRY WEIGHT
80.9lbs (36.7kg)

Kawasaki Mufflers (not included)

Kawasaki 603cc Engine Oil Filter Side Muffler Kit #99999-0414
Kawasaki 603cc Engine Fuel Pump Side Muffler Kit #99999-0415
$1,495.00
Kawasaki Vertical 14.5 HP V-Twin Engine Recoil Clutch Coil 1" x 3-5/32" #FS481V-JS01—
$1,495.00
Product image 1
Product image 2
Product image 3
Product image 4

Description


Kawasaki FS Series engines are engineered to be high powered but still environmentally friendly. They feature a compact, 90° V-twin design with overhead V-valve, as well as an internally vented carburetor with a fuel shut-off solenoid. There is also a dual element air filter with a plastic blower housing that makes for quieter operation.

Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine

14.5hp Kawasaki OHV
1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
Recoil start, 13amp Clutch Coil.
Less fuel tank, has fuel pump
Seperate choke & throttle
Universal replacement engine for commercial wide area walk behinds.
Model FS481V-JS01
83 lbs.


FEATURES:

  • Overhead V-valve
  • 90° V-twin
  • High performance pressurized lubrication
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass screen
  • Dual element air filter
  • Cast-iron cylinder liners
SPECIFICATIONS
DISPLACEMENT
603cm3 (36.8cu. in.)
NUMBER OF CYLINDERS
2
BORE X STROKE
2.9 x 2.8 in. (73 x 72mm)
COMPRESSION RATIO
8.1:1
OIL CAPACITY
1.8U.S. qt (1.7liters)
MAXIMUM POWER
14.5hp (10.8kW)
at 3,600rpm
MAXIMUM TORQUE
30.9ft lbs (42.0N·m)
at 1,800RPM
DRY WEIGHT
80.9lbs (36.7kg)

Kawasaki Mufflers (not included)

Kawasaki 603cc Engine Oil Filter Side Muffler Kit #99999-0414
Kawasaki 603cc Engine Fuel Pump Side Muffler Kit #99999-0415
